Description

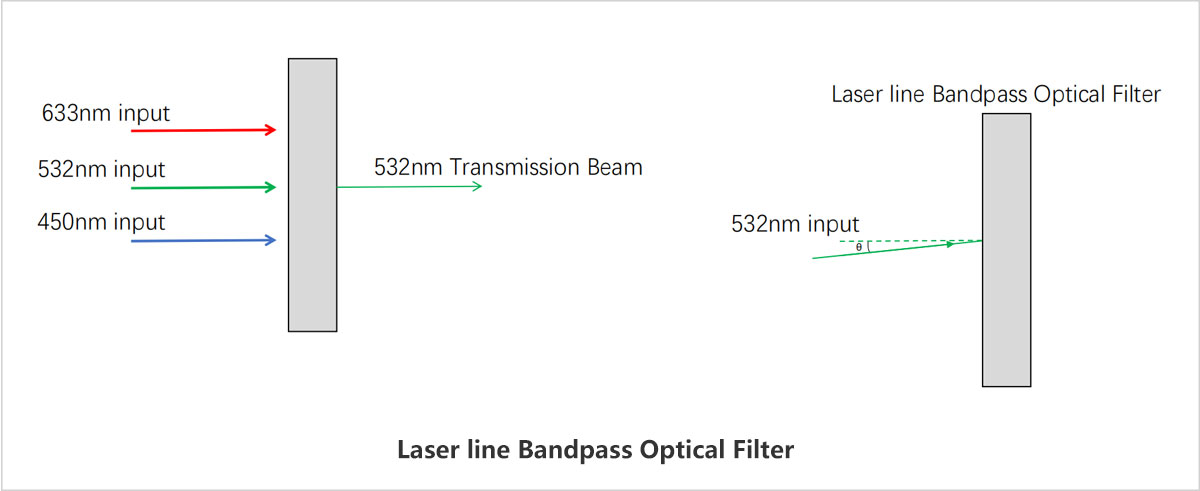

Laser Filters are used to reject a wavelength or range of wavelengths while transmitting wanted wavelengths for a number of laser applications.  Rays optics offers a wide range of Laser Filters suited for many laser system needs.

Applications

●Laser-based Fluorescence Instrumentation

●Raman Spectroscope

●Analytical and Medical Laser Systems

Benefits

● Ultrahigh Peak Transmission T >80%

● Excellent Blocking (OD>4.0)

● Dielectric Coated with IBS Technology

Products

● Minimum Size:Φ2mm or 2mm×2mm

● Maximum Size:Φ50mm or 55×55mm

●Surface quality: 80-50

●Damage threshold::20J/cm2,10ns pulse

● Typical wavelength：488,532,632.8,788,808,980,1064,1570nm

● Environmental conditions: Per Mil-STD-810E, Method 507.3

● Operating Temperature:  -40℃- +60℃
