Brief：Right Angle Prism may be used as a 90 degree reflector or 180 degree retroreflector. The prism deflect, deviate and rotate beams of light as well as dispersing their wavelengths. They usually used for beam deviation or as substrates for beamsplitters.

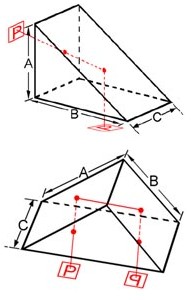

90-degree Deflection

90 degree deflection occurs at the hypotenuse face. The

image is erected and reversed.

180-degree Deflection

180 degree deflection uses with hypotenuse as the

entrance and exit face. The mail application of it is

used as a retroreflector provided that the plane of

incident beam includes the vertex.

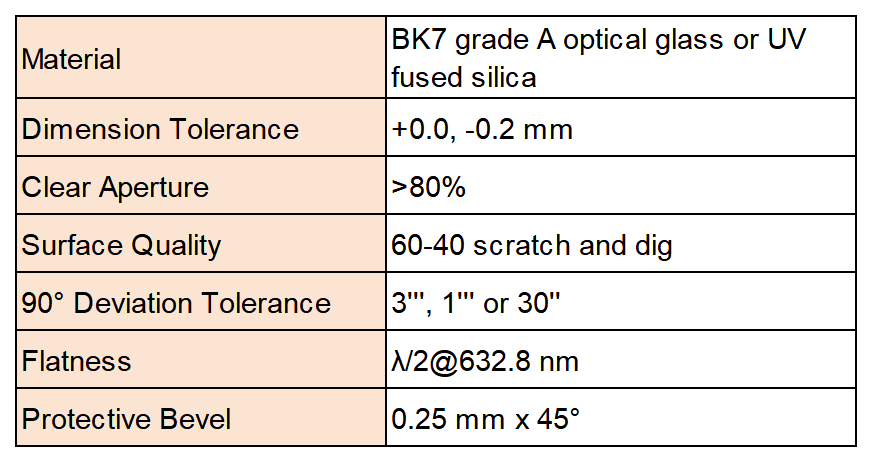

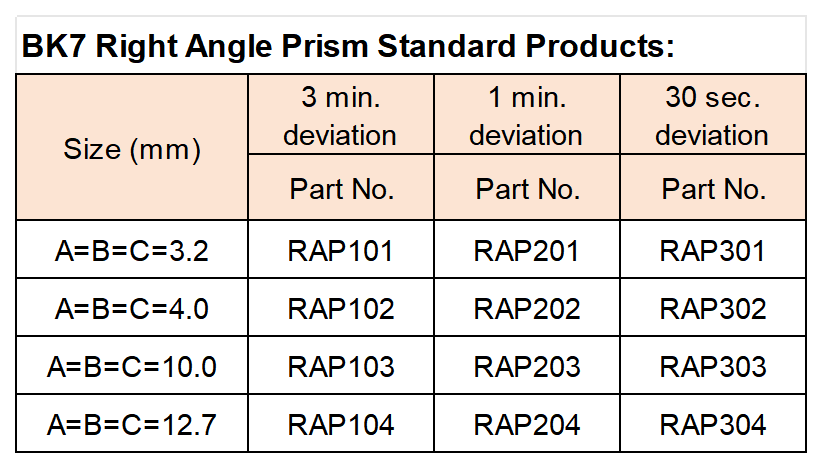

Specification:

Note: Other sizes, material and coatings are available upon request.
