Brief：

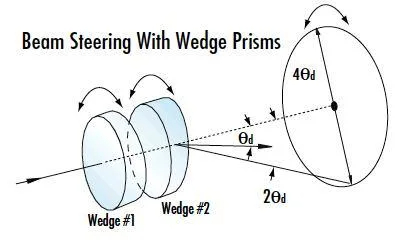

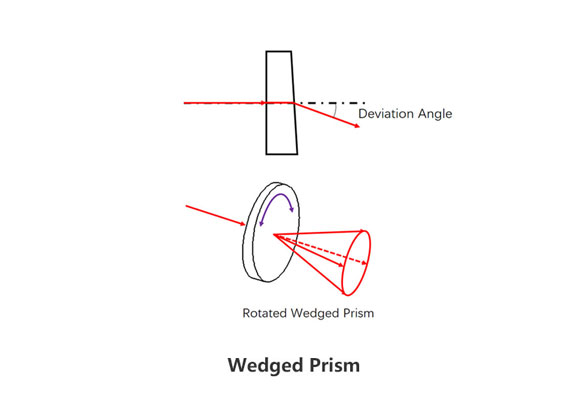

Wedge prisms are usually used to deflect the incident beam to a specified direction at a certain deflection Angle. When used in pairs, by the relative rotation of the two optical wedges, the outgoing beam can be positioned in any direction in a corner cone with the incident beam as the axis. The wedge Angle of the wedge prism and the anti-reflection film on the back of the wedge prism can reduce the interference of the ghost image reflected from the back surface. The high precision substrate ensures the wavefront accuracy of reflected and transmitted light.

Application:

●Laser Measurements System

●Imaging System

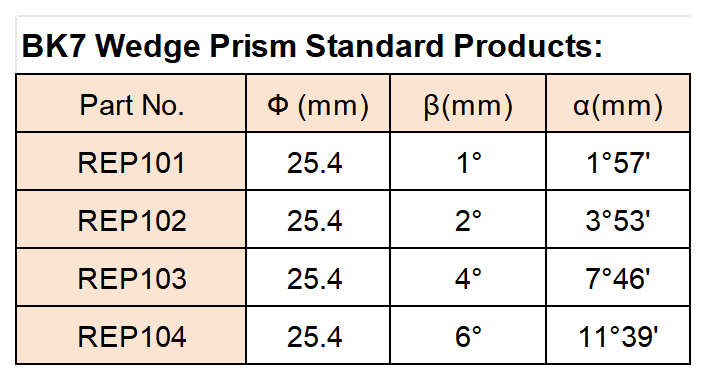

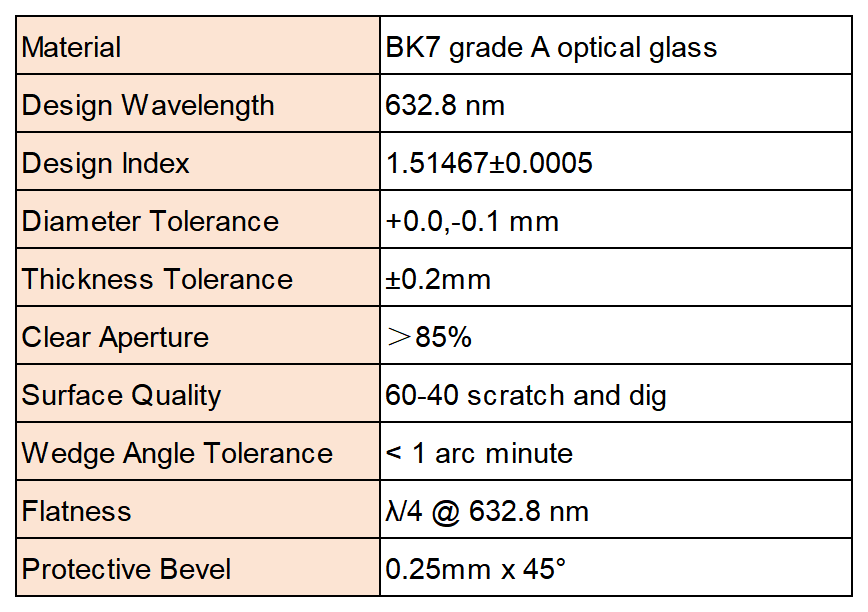

Specification:

Note: Other size, material and coatings are available upon request.
